The performance of PE-coated aluminum foil depends on several factors, including the aluminum foil substrate, PE resin, coating uniformity, interfacial bonding strength, and production and storage conditions. This article explores the key factors that affect its barrier properties, moisture resistance, corrosion resistance, heat-sealing performance, and processability.
The performance of
PE-coated aluminum foil is determined by more than just the aluminum foil thickness or the PE resin itself. Many buyers focus mainly on material weight, color, and surface appearance when selecting a product. However, the actual performance is usually influenced by the quality of the aluminum foil substrate, coating structure, interfacial bonding strength, and production process control. Only when these factors are properly matched can PE-coated aluminum foil achieve a stable balance of moisture resistance, oxygen barrier properties, corrosion resistance, heat-sealing performance, and processability.
1. The Aluminum Foil Substrate Determines Basic Performance
Aluminum foil is the foundation of PE-coated aluminum foil. Its thickness, temper, tensile strength, and elongation all affect the overall performance of the finished product.
In general, thicker aluminum foil offers better puncture resistance, light-blocking capability, and barrier performance. It is suitable for applications that require high sealing performance and long-term durability. Thinner aluminum foil is easier to process and can help reduce material costs. However, if the rolling quality is unstable, problems such as pinholes, cracks, or uneven thickness may occur.
The number of pinholes is particularly important. Even if the PE coating appears complete on the surface, pinholes in the aluminum foil substrate may provide channels for moisture, oxygen, and other substances to penetrate. Therefore, consistent foil thickness and a low pinhole rate are the first steps toward ensuring reliable barrier performance.
2. The Type of PE Resin Affects End-Use Performance
PE is not a single material. Different types of polyethylene vary significantly in flexibility, heat resistance, impact strength, heat-sealing performance, and chemical resistance.
For example, low-density polyethylene generally offers good flexibility and heat-sealing performance, making it suitable for products that require folding, bonding, or heat sealing. Linear low-density polyethylene provides better puncture and tear resistance. High-density polyethylene offers greater rigidity and chemical resistance, but it is relatively less flexible.
If the product will undergo lamination, heat sealing, or further processing, the PE layer must also be compatible with the material it contacts. An unsuitable resin selection may result in insufficient heat-seal strength, brittle seals, or delamination during subsequent processing.
3. Coating Thickness Must Be Uniform
If the PE coating is too thin, it may not adequately cover minor defects on the aluminum foil surface, resulting in reduced moisture resistance, corrosion resistance, and abrasion resistance. If the coating is too thick, it may increase costs and affect heat-sealing speed, dimensional stability, and lamination performance.

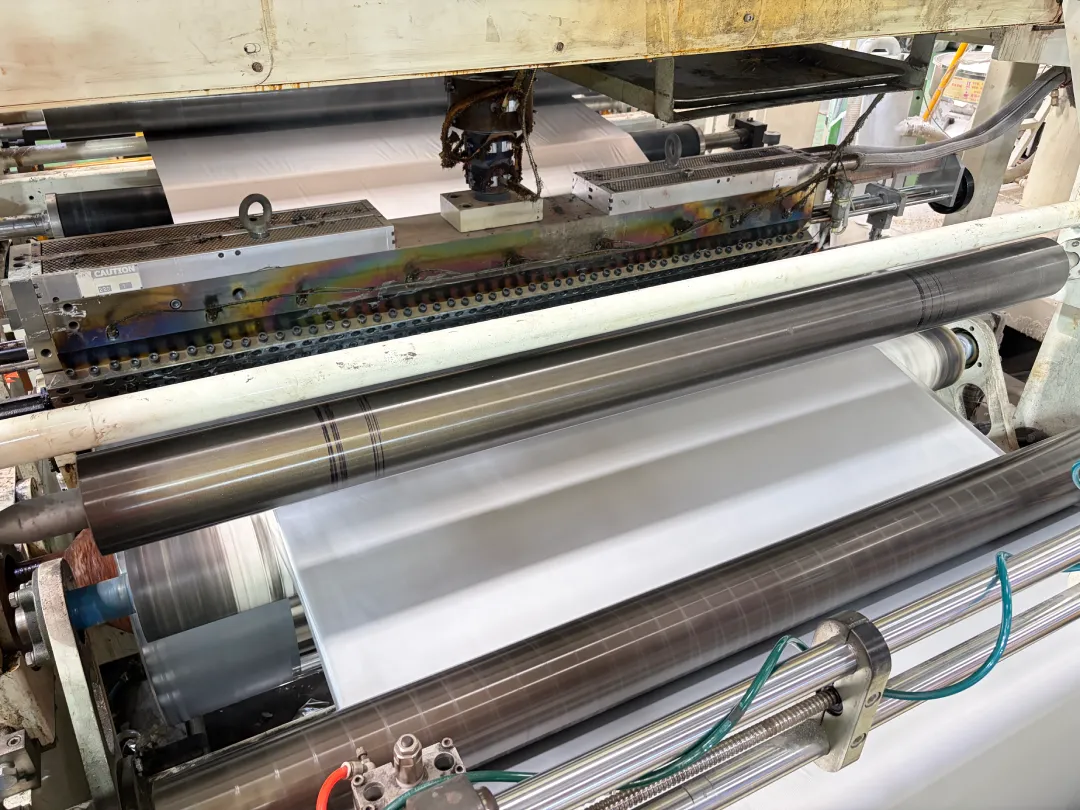

The key is not simply to pursue a higher coating weight, but to ensure uniform thickness in both the machine direction and the transverse direction. During production, unstable control of extrusion temperature, die gap, line speed, or cooling conditions may cause coating fluctuations, edge shrinkage, orange peel, and bubbles. These defects affect not only appearance but may also develop into leak points or delamination during subsequent use.
4. Bonding Strength Between Aluminum Foil and PE
The long-term adhesion of the PE coating to the aluminum foil surface is a critical indicator of product quality. Aluminum foil surfaces may contain an oxide layer, rolling oil residue, dust, or other contaminants. If cleaning and surface treatment are inadequate, the PE layer may only be temporarily attached. It may delaminate after bending, heating, exposure to moisture, or long-term storage.
Cleaning and drying the aluminum foil before coating, along with appropriate surface treatment, can improve surface energy and wetting performance, thereby enhancing coating adhesion. The cleanliness, roughness, and surface chemistry of the aluminum substrate can all directly affect the bonding performance of subsequent coatings or adhesives.
In actual production, adhesion is usually verified through peel tests, cross-hatch tests, or heat-aging tests. The ASTM D3359 cross-hatch test is one commonly used method for evaluating coating adhesion.
5. Processing and Storage Conditions Also Matter
Even when the material formulation is appropriate, the finished product may still show inconsistent performance if processing temperature, pressure, cooling rate, or winding tension is not properly controlled. Excessive temperature may cause PE aging, discoloration, or deformation, while insufficient temperature may result in inadequate melting of the coating and negatively affect adhesion and heat sealing.
In addition, PE-coated aluminum foil should not be exposed to high-temperature or high-humidity environments for extended periods. Poor packaging or unsuitable storage conditions may cause surface contamination, roll blocking, or deterioration of coating performance.
PE-coated aluminum foil should not be evaluated based on a single test result. A more reliable assessment should consider the aluminum foil substrate, PE formulation, coating uniformity, adhesion strength, heat-sealing performance, and actual service environment.
Only when the entire process—from material selection to production control—remains stable can PE-coated aluminum foil deliver reliable protection and barrier performance.
