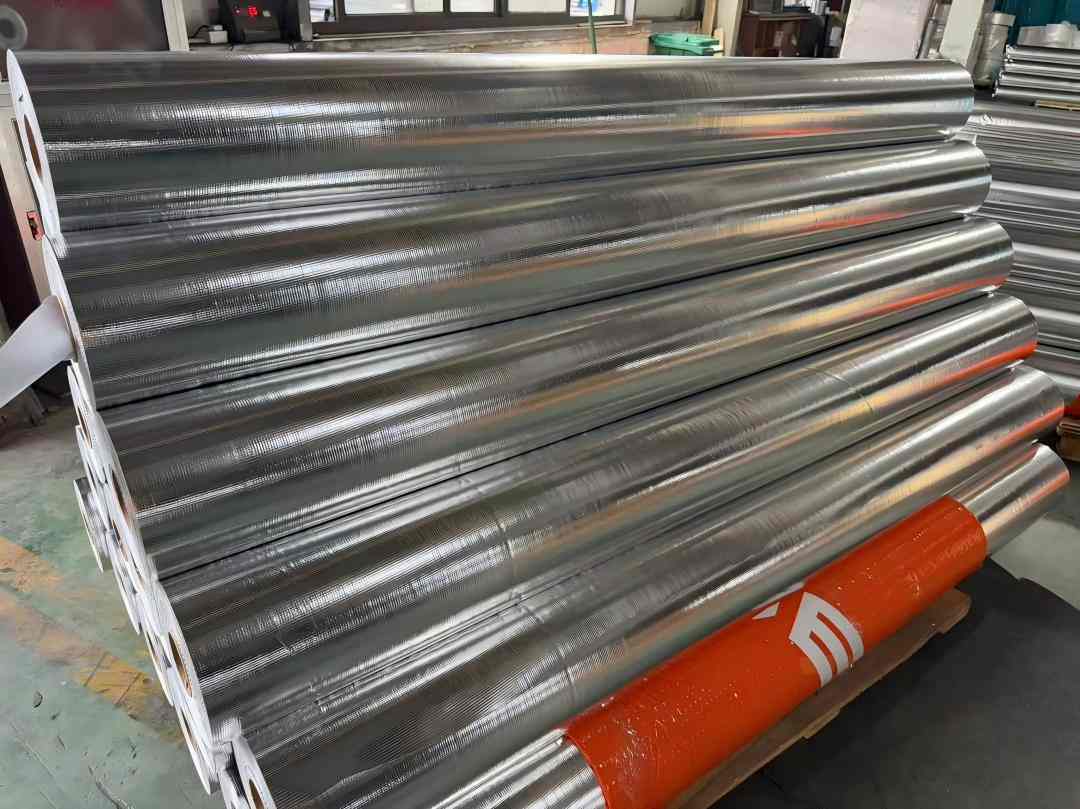

Flame Retardant Aluminum Foil Woven Fabric Working Principle Explained

Many people’s first reaction to flame-retardant aluminum foil woven fabric is simple: “just make the aluminum foil thicker and it won’t burn easily.” Anyone who has actually worked in composite production knows this is a surface-level assumption. What really determines performance is not whether a single layer resists fire, but how the entire structure responds under high temperature and flame exposure.

Starting from the base fabric structure

The bottom layer of flame-retardant aluminum foil woven fabric is typically polypropylene (PP) or high-strength polyethylene (PE) modified yarn woven fabric. In some cases, flame-retardant modified polyester yarn is also used. This woven layer looks like a simple mechanical support skeleton, but in practice it determines whether the whole material collapses quickly under heat.

The issue with ordinary woven fabrics is obvious in production and testing: once exposed to heat, they shrink significantly. When the temperature approaches their softening point, the structure loosens, and the composite layers above lose support almost immediately.

Flame-retardant grades do not aim to make the fabric “non-shrinking.” Instead, through fiber modification and controlled weave density, the structure is designed to maintain a basic network stability under high temperature, preventing sudden structural collapse.

Put simply, this layer’s job is to “buy time” for the aluminum foil above it.

The real role of the woven base layer in the system

In many simplified explanations, the woven fabric is treated purely as a strength carrier. In flame-retardant structures, its role is more critical: it slows down heat transfer.

When flame contacts the material, heat first conducts into the base fabric. If the fabric has a low melting point and high shrink rate, it creates “thermal penetration channels.” Once those channels form, even an intact aluminum layer above cannot prevent failure.

Flame-retardant base fabrics typically rely on three adjustments:

• Increasing thermal shrinkage resistance so the structure does not collapse instantly
• Adding small amounts of flame-retardant fibers or masterbatch to reduce combustion propagation
• Optimizing yarn density to extend oxygen diffusion paths

None of these aim to make the material “non-combustible.” The goal is more practical: slower burning and resistance to burn-through.

Aluminum foil layer: not a “fireproof skin”

The aluminum foil layer is often seen as the main protective barrier, but its function is primarily physical rather than chemical flame resistance.

Aluminum has two key properties: high reflectivity and high thermal conductivity. In a fire environment, it performs three main functions:

First, it reflects radiant heat. A significant portion of flame heat is transferred through radiation, and aluminum foil can reflect part of that energy back, reducing heat input to the inner layers.

Second, it limits oxygen diffusion. A continuous aluminum layer partially blocks airflow and convection paths, making sustained combustion more difficult.

Third, it spreads localized heat. Because aluminum conducts heat efficiently, it disperses hot spots, reducing the chance of localized ignition in the base fabric.

However, a critical point must be understood: aluminum foil itself does not “stop burning.” It only redistributes heat. Without structural support from the base layers, it can still be pierced, oxidized, or fail under prolonged exposure.

The flame-retardant modification system is the real differentiator

The gap between standard aluminum foil fabric and flame-retardant grade products is not in the aluminum layer or woven fabric, but in the flame-retardant system itself.

In practice, three mechanisms are often combined:

One is the gas-phase mechanism, where non-combustible gases are released during heating to dilute oxygen concentration.
Another is the condensed-phase charring mechanism, where a protective carbonized layer forms to block further thermal degradation.
The third is the heat-absorbing mechanism, where additives absorb energy and delay decomposition.

These mechanisms are rarely used alone in real formulations. They are blended because a single mechanism rarely remains stable under real fire conditions.

A typical field observation:

• Ordinary materials: rapid burning, dripping, flame spread
• Flame-retardant materials: surface darkening, shrinkage, charring, but no continuous flame propagation

The core difference is whether a stable “thermal isolation layer” can be formed during combustion.

The full reaction process under fire exposure

The behavior of the material under flame exposure is not instantaneous—it develops in stages.

Stage 1: surface heating
The aluminum foil layer absorbs radiant heat first. Temperature rises quickly, but part of the heat is reflected away.

Stage 2: thermal decomposition of the base fabric
Ordinary materials soften or melt directly. Flame-retardant grades begin dehydration and slight carbonization. This stage is critical—structural integrity determines whether burn-through occurs later.

Stage 3: activation of flame-retardant system
Flame-retardant components release inert gases and form a carbonized or dense residue layer. Oxygen is blocked, and the combustion chain reaction is interrupted.

Stage 4: thermal equilibrium formation
Although external temperature remains high, heat penetration slows significantly. Internal temperature rise is controlled, and flame propagation stops.

Across all stages, the material is not “non-flammable.” It is continuously working through delay, interruption, and isolation.

Fundamental difference between ordinary and flame-retardant aluminum foil fabric

Visually, both materials may look similar, but their behavior under fire is completely different.

The main weakness of ordinary aluminum foil composite fabric is structural simplicity. Once the aluminum layer is locally damaged, flame directly enters the woven layer, leading to rapid spread, melt dripping, or full penetration burning.

Flame-retardant materials are not defined by a single “non-burning layer,” but by a broken combustion pathway:

Heat cannot easily enter, oxygen cannot easily penetrate, and the combustion chain cannot sustain itself.

In structural terms:

• Ordinary structure behaves like a single barrier
• Flame-retardant structure behaves like a multi-layer buffering and interruption system

This is why engineering applications focus on system design rather than single-material performance.

System-level synergy of flame retardancy

When the aluminum foil layer, woven base fabric, and flame-retardant system are viewed together, they form a coordinated thermal-oxygen-combustion control structure.

• Aluminum foil handles heat reflection and radiant energy blocking
• Woven fabric maintains structural integrity and delays collapse
• Flame-retardant additives interrupt combustion chemistry and control smoke behavior

These functions are not simply stacked—they compensate for each other.

In real-world applications, effective flame resistance is rarely about one strong layer. It is about ensuring that when one layer begins to fail, another layer can still maintain control.

From a practical engineering perspective, the most reliable indicator is not whether the material ignites, but whether it self-extinguishes after flame removal and retains structural integrity.

This is the reason flame-retardant aluminum foil woven fabric is used in industrial insulation systems: it is not designed to prevent ignition entirely, but to keep fire behavior under control once ignition occurs.
