PE coating (Polyethylene Coating) is not simply a matter of “covering a material with a layer of plastic.” In industrial manufacturing, it typically refers to an extrusion coating process in which molten polyethylene is continuously and uniformly applied to substrates such as paper, paperboard, aluminum foil, plastic film, nonwoven fabric, or woven fabric. The resulting coating provides properties such as moisture resistance, heat sealability, chemical resistance, abrasion resistance, and improved interlayer bonding.
For manufacturers of packaging, building insulation, reflective insulation materials, and laminated films, the value of PE coating is not simply whether PE is present. What matters is whether the PE layer can form a stable bond with the substrate and continue to perform throughout subsequent printing, bag making, heat sealing, transportation, and end use.

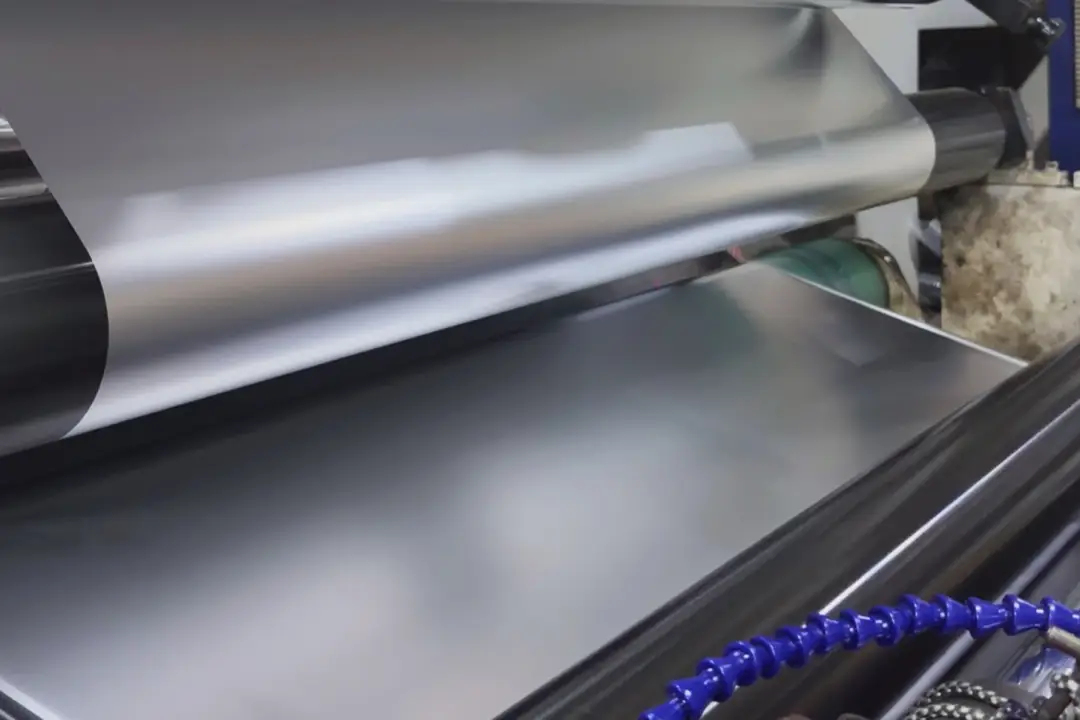

A typical PE coating process uses extrusion coating technology. PE resin pellets are fed into an extruder, where they are gradually melted through screw conveying, shearing, and heating. The molten polymer is then forced through a T-die to form a continuous curtain of hot polymer melt, which is deposited onto the moving substrate.
The substrate and molten PE then pass through a nip formed by a pressure roll and a chill roll. These rolls perform three critical functions within a very short period: spreading the molten PE across the substrate, consolidating the contact interface, and rapidly cooling the polymer to set the coating.
The final product is therefore not simply two materials placed together. It is a composite structure with a defined and engineered interface between the PE layer and the substrate.
During extrusion coating, the melt temperature is typically much higher than that used in conventional blown-film or cast-film processing. Technical information from LyondellBasell indicates that resin melt temperatures at the die can reach approximately 330°C. For substrates such as paper, a PE melt temperature of around 315°C or higher is generally required to achieve good adhesion.
The high temperature is not only intended to improve polymer flow. More importantly, it promotes a controlled degree of oxidation at the surface of the PE, generating polar functional groups that can improve adhesion to the substrate.
Polyethylene is inherently a non-polar material. In its untreated state, it does not naturally adhere strongly to materials such as paper fibers, aluminum foil, PET, or BOPP. Therefore, coating performance depends on the compatibility of three factors: the molten polymer, the substrate surface, and the processing conditions.
At elevated temperatures, PE has better flow and wetting characteristics. This allows the molten polymer to penetrate microscopic pores and surface irregularities in paper fibers, creating mechanical interlocking between the coating and substrate.
At the same time, LDPE undergoes a certain degree of surface oxidation at high temperatures. This can improve the polarity of the polymer surface and enhance its interaction with the substrate.
Industry technical information commonly identifies a melt-temperature range of approximately 300–330°C as favorable for promoting controlled LDPE oxidation and improving adhesion during extrusion coating.
The surface characteristics of the substrate are equally important.
Paper, paperboard, and some nonwoven fabrics have relatively porous and rough surfaces. Molten PE can penetrate into these surface structures, which is one reason PE coating is widely used for liquid packaging board, food packaging paper, and moisture-resistant paper.
By contrast, substrates such as aluminum foil, PET, and BOPP have smoother and more chemically inert surfaces. Relying on PE alone may therefore be insufficient to achieve the required peel strength. Depending on the structure, corona treatment, flame treatment, plasma treatment, or a suitable primer may be required.
After the molten PE contacts the substrate, it must be pressed against the substrate before it cools and solidifies.
Insufficient nip pressure can result in local voids, pinholes, edge lifting, or interlayer delamination. On the other hand, if the polymer cools too quickly before sufficient wetting takes place, adhesion can also be reduced.
The balance between melt temperature, contact time, nip pressure, and cooling rate is therefore critical to achieving a stable coating interface.
PE coating quality is normally determined by a combination of several process parameters rather than coating thickness alone.
| Process Parameter | Main Impact on Finished Product |
|---|---|
| Melt temperature | Affects melt flow, oxidation, wetting, and adhesion |
| Coating weight/thickness | Influences moisture resistance, pinhole risk, flexibility, and material cost |
| Air gap | Affects oxidation time, cooling rate, and edge shrinkage |
| Line speed | Influences production capacity, draw ratio, coating uniformity, and the adhesion processing window |
| Nip pressure and cooling | Affect interfacial contact, surface smoothness, peel strength, and web stability |
In actual production, die temperature uniformity is particularly important and is sometimes overlooked.
LyondellBasell's technical guidelines recommend keeping temperature differences across the die as small as possible, with a variation of approximately 1°C or less being desirable for stable cross-web coating thickness.
Uneven temperature distribution can directly cause coating-weight variation across the web. Areas that are too thin may develop pinholes and lose barrier performance, while areas that are too thick increase resin consumption and may affect downstream lamination and bag-making processes.
For some LDPE extrusion-coating grades, processing melt temperatures may fall within a range of approximately 270–335°C, while minimum coating weights can be as low as around 5 g/m².
However, this does not mean that every application is suitable for an ultra-thin coating. For packaging structures requiring moisture resistance, oil resistance, or puncture resistance, coating weight must also be evaluated in combination with substrate smoothness, storage and transportation conditions, product characteristics, and downstream converting processes.
LDPE remains one of the most widely used materials for PE coating. It offers relatively high melt strength, a broad processing window, good heat-sealing performance, and flexibility. It is commonly used on paper, paperboard, aluminum foil, and flexible packaging structures.
Liquid food cartons, paper cups, moisture-resistant kraft paper, and certain aluminum foil laminated packaging structures may use LDPE as a heat-sealing layer or moisture-resistant layer.
LLDPE generally provides advantages in puncture resistance, tensile performance, and heat sealing. However, its extrusion-coating stability, neck-in behavior, and processing conditions require more application-specific optimization.
For applications requiring a lower heat-seal initiation temperature, higher hot tack strength, or improved impact resistance, manufacturers may also use mPE, EVA, or multilayer coextrusion structures instead of relying on a single LDPE layer.
Therefore, material selection should not begin with the question, “Should we use LDPE or LLDPE?”
A better starting point is to identify the actual failure risk of the finished product.
Is the main concern moisture, leakage, heat-seal failure, aluminum foil pinholes, low-temperature brittleness, or interlayer delamination?
The resin and coating structure should be selected according to the end-use requirements rather than simply following a standard formulation.
The most common functions of PE coating are to provide resistance to liquid water and water vapor while creating a heat-sealable surface. However, in industrial laminated materials, PE can perform several additional functions.
In paper cups, cartons, and food packaging paper, the PE layer prevents liquids from penetrating the paper fibers and provides the heat-sealable interface required for sealing.

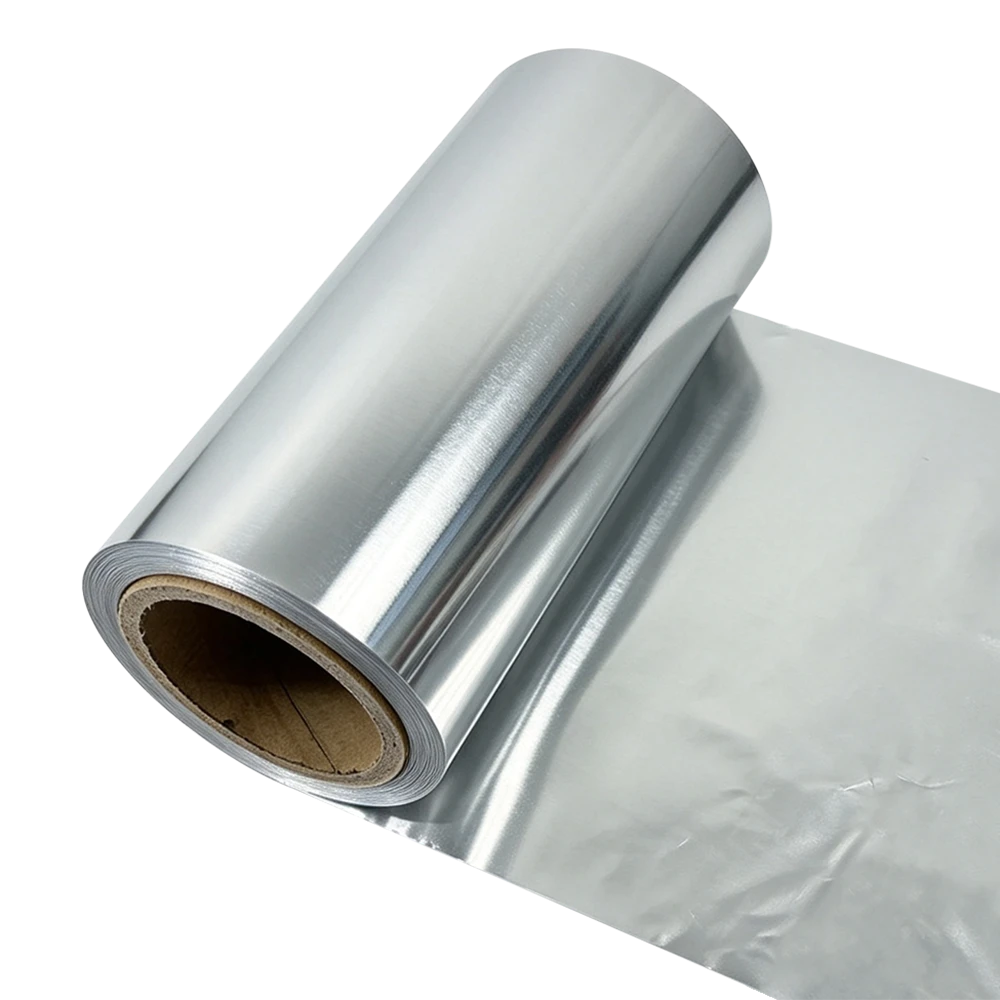

In aluminum foil laminated packaging, PE can serve as a bonding layer, heat-sealing layer, or protective/buffer layer, improving the processing performance of the overall laminate.
In reflective insulation materials for buildings, PE coating can protect the aluminum layer or woven substrate while improving moisture resistance, tear resistance, and durability during installation.
In nonwoven fabrics, woven fabrics, and industrial bag materials, PE coating can provide water resistance, dust protection, and a certain level of chemical protection.
One of the major advantages of extrusion PE coating is that coating, lamination, and heat-sealing functionality can be integrated into a continuous high-speed production process.
Commercial PE resin suppliers commonly identify paper, paperboard, aluminum foil, and plastic films as typical coating substrates, while barrier performance, heat sealability, and surface protection are among the key benefits of extrusion coating.
The fundamental principle of PE coating is to use molten polyethylene under high temperature, pressure, and controlled cooling conditions to form a stable composite structure with the substrate.
The final coating performance is determined not only by the PE resin grade, but also by melt temperature, substrate treatment, air gap, coating weight, nip conditions, and cooling control.
For industrial packaging and laminated-material buyers, evaluating a PE-coated material should go beyond coating thickness or coating weight. More importantly, the material should be evaluated against the requirements of the intended application, including peel strength, heat sealing, water resistance, pinhole resistance, flex resistance, and aging performance.
When material selection is closely matched to actual end-use conditions, PE coating becomes more than just a layer of plastic. It becomes a reliable functional layer that contributes to the performance and durability of the entire composite structure.
