XPE (cross-linked polyethylene) foam is commonly selected for HVAC duct insulation because it can provide a practical combination of thermal insulation, condensation control, moisture resistance, lightweight construction, flexibility, and durability in a single material.
For chilled air ducts, ductwork associated with chilled-water systems, or HVAC systems operating in humid environments, the closed-cell structure of XPE Foam Insulation can significantly reduce the risk of moisture entering the insulation layer and affecting its long-term thermal performance.
However, it would be inaccurate to conclude that “XPE is better than all other foams” in every application. NBR/PVC elastomeric insulation, EPDM, PIR, fiberglass, and other materials may be more suitable for applications involving very low temperatures, strict fire-performance requirements, complex geometries, or demanding acoustic requirements. The appropriate material should be selected according to duct temperature, humidity, fire regulations, installation conditions, and project budget.
Duct insulation is not only intended to reduce heat gain or heat loss. For supply air ducts carrying cooled air, air-handling units, and ductwork located near chilled-water systems, condensation can often be an even more important concern.
When the ambient air temperature and humidity are relatively high while the external surface temperature of the duct is below the ambient dew point, water vapor in the air can condense on the duct surface or insulation system.
Long-term condensation may result in:
Moisture damage to ceilings, walls, or roofing systems;
Corrosion of metal ductwork;
Increased thermal conductivity after the insulation absorbs moisture;
Mold growth, unpleasant odors, and potential indoor air quality issues;
Higher maintenance costs and premature insulation failure.
Mechanical insulation systems generally require a continuous vapor retarder in areas where condensation may occur. Particular attention should also be paid to chilled air ducts, duct supports, hangers, and other thermal bridge locations.
The advantages of XPE Foam Insulation are particularly relevant to this combination of requirements: thermal resistance, moisture and vapor control, and ease of installation.
| Requirement | XPE Performance | Significance for HVAC Ducts |
|---|---|---|
| Reduction of heat gain or heat loss | Closed-cell foam contains numerous independent microscopic air cells and provides relatively low thermal conductivity | Helps reduce heat gain on chilled air ducts and heat loss from heated air ducts, improving system efficiency |
| Condensation control | The closed-cell structure limits water and moisture penetration into the insulation | Helps reduce the risk of internal condensation, dripping, corrosion, and mold |
| Low water absorption | PE is naturally hydrophobic, while closed-cell XPE has low water absorption | Helps maintain relatively stable thermal performance in humid environments |
| Vapor resistance | High closed-cell XPE generally provides relatively high resistance to water vapor transmission | Can reduce dependence on additional vapor-retarder layers; however, whether an additional vapor barrier can be omitted must be determined according to product test data and project requirements |
| Lightweight construction | Density is generally lower than many traditional insulation materials | Reduces transportation, handling, lifting, and the load imposed on duct support systems |
| Flexibility | XPE can be supplied in rolls and can be bent around straight ducts, elbows, and irregular shapes | Facilitates installation and on-site cutting, with relatively low material waste |
| No fiber shedding | Unlike fiberglass and mineral wool, XPE does not contain loose fibers | Suitable for projects where cleaner installation and reduced construction dust are desired |
| Chemical and weather resistance | Cross-linking generally improves the stability of the foam structure and physical properties | Suitable for common HVAC environments such as equipment rooms, suspended ceilings, and industrial buildings |
Non-cross-linked PE foam can also provide thermal insulation and moisture resistance. However, XPE generally offers advantages for HVAC duct insulation because cross-linking improves its cell structure and mechanical properties.
| Comparison | XPE | Non-Cross-Linked PE |
|---|---|---|
| Cell structure | Generally finer, more uniform, and more stable | Cell structure may be relatively coarse, depending on the formulation |
| Mechanical performance | Better compression resistance and resilience, with less risk of permanent deformation during installation | Generally weaker and more susceptible to thickness loss under compression |
| Heat resistance and dimensional stability | Generally better dimensional stability during long-term use | More susceptible to deformation under elevated temperatures or prolonged use |
| Lamination compatibility | Well suited for lamination with aluminum foil, PE film, adhesive layers, and woven fabric | Lamination strength, flatness, and durability may be comparatively lower |
| Duct installation | Suitable for roll-form insulation, wrapping, bonding, and external duct insulation | More commonly used for packaging, cushioning, or lower-demand insulation applications |
| Long-term thermal performance | More capable of maintaining performance under normal compression and moisture conditions | Greater attention may be required regarding compression, deformation, and moisture |
After chemical or physical cross-linking, XPE generally develops a finer and more stable closed-cell structure. This is one of the main reasons why it is often considered more suitable than conventional PE foam for HVAC duct insulation.
| Material | Advantages Compared With XPE | Limitations Compared With XPE | More Suitable Applications |
|---|---|---|---|
| XPE | Lightweight, moisture-resistant, closed-cell, flexible, easy to install, fiber-free | Fire performance and temperature resistance depend on the specific formulation; high-temperature performance is generally lower than inorganic materials | Standard HVAC ducts, chilled air ducts, external insulation of metal ducts, humid environments |
| NBR/PVC elastomeric foam | Excellent condensation control, high flexibility, mature installation practices for pipes and complex areas | Usually more expensive; odor, smoke toxicity, and environmental requirements may need to be verified | Chilled-water pipes, refrigerant pipes, VRF systems, complex-shaped areas |
| EPDM | Good weatherability, ozone resistance, temperature range, and long-term durability | Generally higher cost | Outdoor HVAC systems and demanding environmental conditions |
| Fiberglass | Cost-effective, good temperature resistance, and good acoustic performance | Requires a continuous vapor barrier; thermal performance can deteriorate when wet; fiber dust may be generated during installation | Large ventilation ducts, applications requiring higher acoustic performance, relatively dry environments |
| Mineral wool | Excellent fire resistance and high-temperature performance | Heavier, moisture can present performance risks, and installation may generate dust; external protection may also be required | High-temperature ducts and industrial projects with stringent fire requirements |
| PIR / PU foam | Low thermal conductivity and high thermal resistance can often be achieved with thinner insulation | More rigid and less suitable for wrapping complex duct geometries; fire and smoke performance must be evaluated as part of the complete system | Space-constrained applications and rigid board-based insulation systems requiring high thermal resistance |
For fibrous insulation materials, damage to the vapor barrier can allow moisture to enter the insulation layer and significantly affect long-term thermal performance. For cold surfaces, the low moisture absorption and relatively low water vapor permeability of closed-cell foam can therefore provide an important advantage.
HVAC insulation design generally places particular importance on controlling water vapor migration when condensation is possible, because moisture control is essential for maintaining insulation performance over time.
The aluminum foil facing can provide surface protection and, when an appropriate air space is present, reflect a portion of radiant heat. More importantly, a properly laminated aluminum foil facing can improve the overall vapor and moisture resistance of the insulation system.
This structure is commonly used for external duct insulation, equipment insulation, and HVAC systems in industrial buildings.
This configuration can be used when double-sided protection, two-sided reflective surfaces, or higher overall roll strength is required.

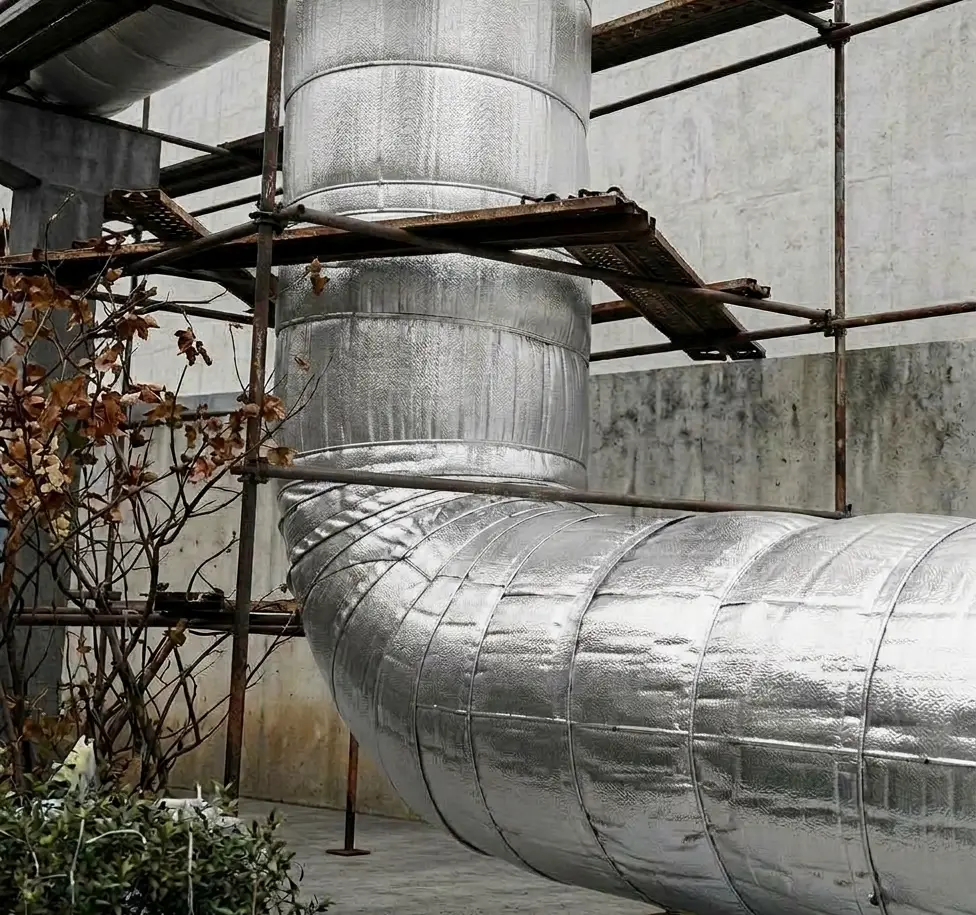

For external duct insulation, all overlaps and joints should normally be properly sealed with suitable tapes or sealing systems to prevent moisture from penetrating through the joints and creating vapor pathways.

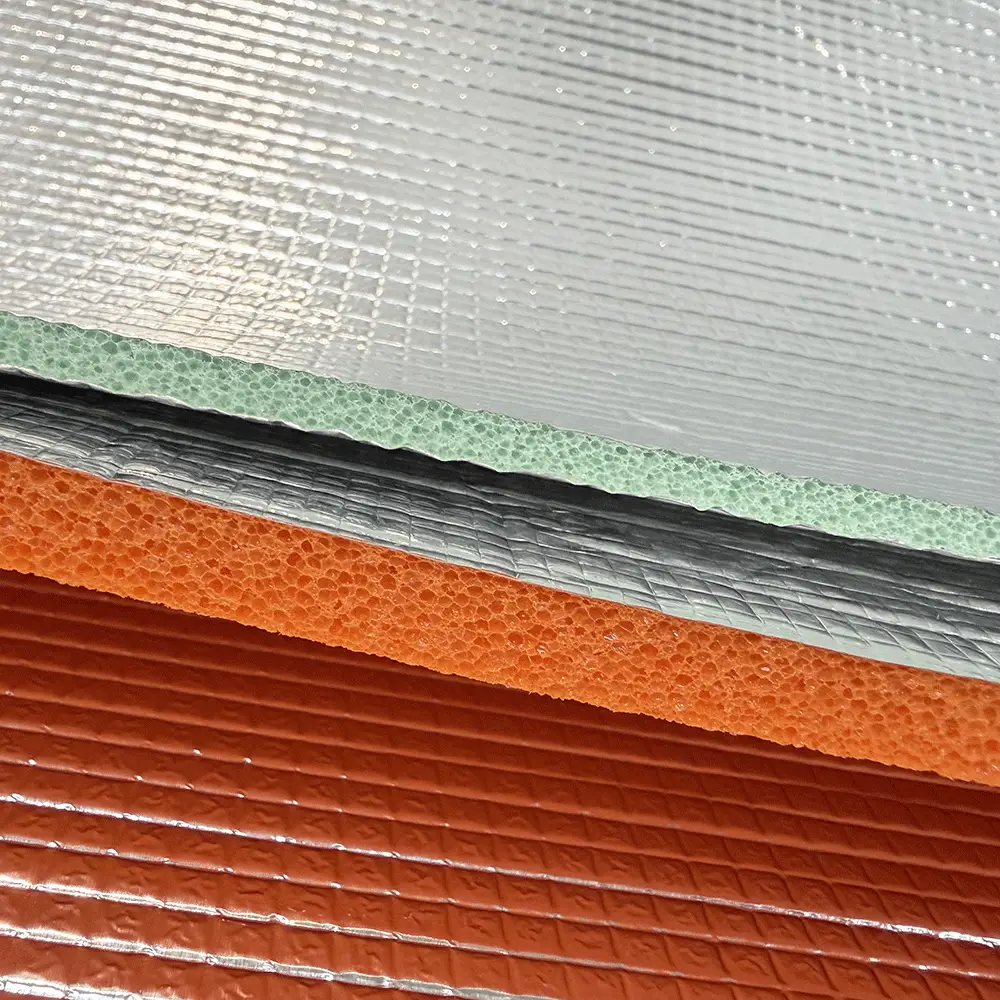

This structure is suitable when higher tensile strength, tear resistance, and resistance to construction-related abrasion are required.
It can be particularly useful for large-size ducts, industrial buildings, long-distance installation, or HVAC insulation projects where the mechanical strength of the roll material is an important consideration.
XPE Foam Insulation is widely used for HVAC duct insulation because it offers a practical balance of thermal insulation, moisture resistance, lightweight construction, flexibility, and processing efficiency.
For conventional HVAC duct applications, properly selected XPE with suitable density and thickness, combined with a reliable aluminum foil facing and properly sealed joints, can help improve the integrity of the insulation system and reduce the risk of condensation.
However, insulation selection should not be based simply on whether XPE, EPE, elastomeric foam, or PIR is “better.” Professional material selection should consider duct temperature, local dew-point conditions, humidity load, fire-performance requirements, installation location, service life, and applicable building codes and standards.
For HVAC systems designed for long-term operation, verified material performance data, the design of the laminated insulation structure, and the quality of joints and on-site installation can have a greater impact on the final performance of the insulation system than simply choosing one particular type of foam.
